Quick Opening End Closure

  • Home
  • Quick Opening End Closure

HORIZONTAL QUICK OPENING END CLOSURE

A safe, quick and economic access for your pig launchers / receivers, filters separators and pressure vessels.

  • Orizon Petro Engineering has been manufacturing Quick Opening Closures (QOC) are highly used for various vessel and pipeline applications such as pressure vessels, pig launcher/receivers, filter separators with vertical or horizontal installation, Basket Strainers, Thermal Processing Equipment, tanks, reactors, Metering Skids and etc.

Features :

  • Provide mechanical safety locking mechanism
  • All Quick Closures come with the sand blasted and primer coated and color of your choice
  • Quick Closures can be hydrostatically tested on request
  • It offers spare parts for all of its products during maintenance
Technical Specification
Available Sizes 2'' To 60''
ANSI Rating ASME 150# To 2500#
Design Codes ASME Sec-VII Div-1,UG-35(2) PD 5500
Closure Orientation Horizontal
Type Of Connection Butt Welded, Flanged Ended
Option Available
Limit Switch --
Inconnel /Stainless Steel Weld Overly --
Hydraulic Operating System --
Worm Gear Operation --

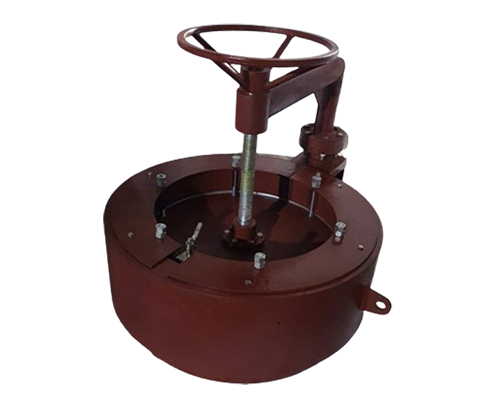

VERTICAL QUICK OPENING END CLOSURE

A safe, quick and economic access for your pig launchers / receivers, filters separators and pressure vessels.

  • Orizon Petro Engineering has been manufacturing Quick Opening Closures (QOC) are highly used for various vessel and pipeline applications such as pressure vessels, pig launcher/receivers, filter separators with vertical or horizontal installation, Basket Strainers, Thermal Processing Equipment, tanks, reactors, Metering Skids and etc.

Features :

  • Provide mechanical safety locking mechanism.
  • All Quick Closures come with the sand blasted and primer coated and color of your choice
  • Quick Closures can be hydrostatically tested on request
  • It offers spare parts for all of its products during maintenance
Technical Specification
Available Sizes 2'' To 60''
ANSI Rating ASME 150# To 2500#
Design Codes ASME Sec-VII Div-1,UG-35(2) PD 5500
Closure Orientation Vertical
Type Of Connection Butt Welded, Flanged Ended
Option Available
Limit Switch --
Gear Operation --
Hydraulic Operating System --
Inconnel /SS Weld Overly --

ORIZON PETRO ENGINEERING LLP is involved in design and manufacturing of pipeline Engineering products and pigging product.
